Web-based power system simulation platform

Renewable energy modelling, harmonic study and filter design

In progress

Small-signal analysis, system strength assessment, contingency analysis, renewable plant sizing, and short-circuit current calculations

Features

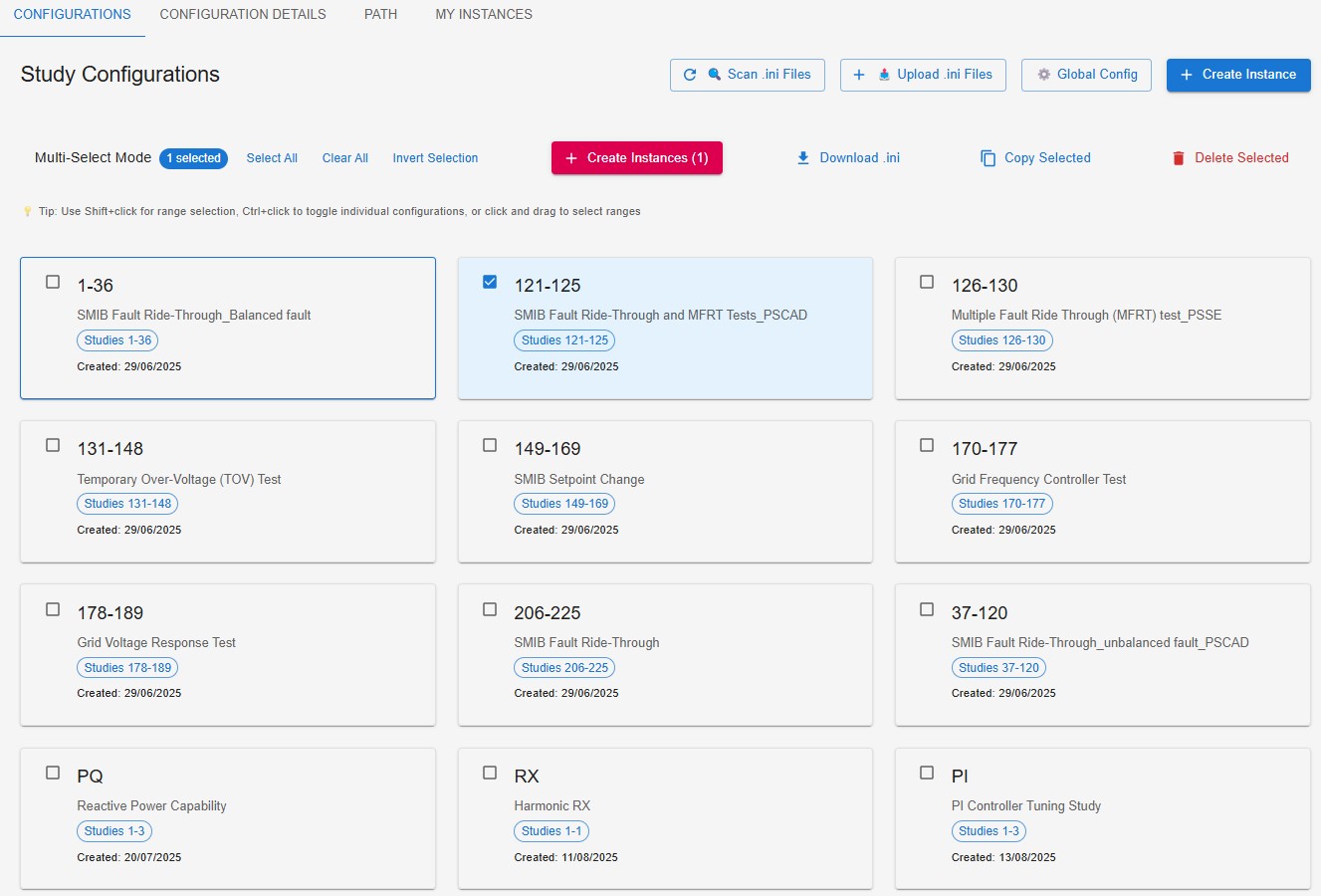

Customised Modelling

User-defined PSSE and PSCAD modelling supporting ini file upload. Supports AEMO DMAT or user-defined Study-Specific Parameters.

Automatic PI Tuning

Fast machine learning-based PI gains tuning. Identifies the best PI gain across full PQ envelope, fault conditions, and setpoint variations with rise time and settling time limits.

PQ Capability Curve

Maximises MW generation with optimised harmonic filter Mvar and OLTC. Generates PQ capability curve in one click.

Harmonic Distortion & Amplification

Produces harmonic emission results comparable to PowerFactory without scripting. No scripting required – input only grid, transformer, cable, and inverter parameters.

Harmonic R/X Loci

Visualises harmonic order R/X loci considering inverter-based resources and background harmonics. Displays colour-coded harmonic allocation percentages within the R/X loci.

Harmonic Filter

Auto-tuning of damped filter sizing and preparation of detailed filter design reports including capacitor, reactor, and resistor specifications.

🚀 Quick Start

Get started with your first secure simulation in minutes

1. Configure

Set up simulation parameters through our intuitive web interface

2. Path

Configure the paths for your software and working directories

3. Run

Execute simulations remotely with real-time monitoring
